Dual Radius End Full Rack Assembly w/ DTRs - Raw Finish
Dual Radius End Full Rack Assembly w/ DTRs - Raw Finish
Dual Radius End Full Rack Assembly w/ DTRs - Raw Finish
Dual Radius End Full Rack Assembly w/ DTRs - Raw Finish
Dual Radius End Full Rack Assembly w/ DTRs - Raw Finish

Dual Radius End Full Rack Assembly w/ DTRs - Raw Finish

Regular price$969.00
/
Shipping calculated at checkout.
  • Worldwide Shipping Available
  • Questions? Contact Us Before Purchasing

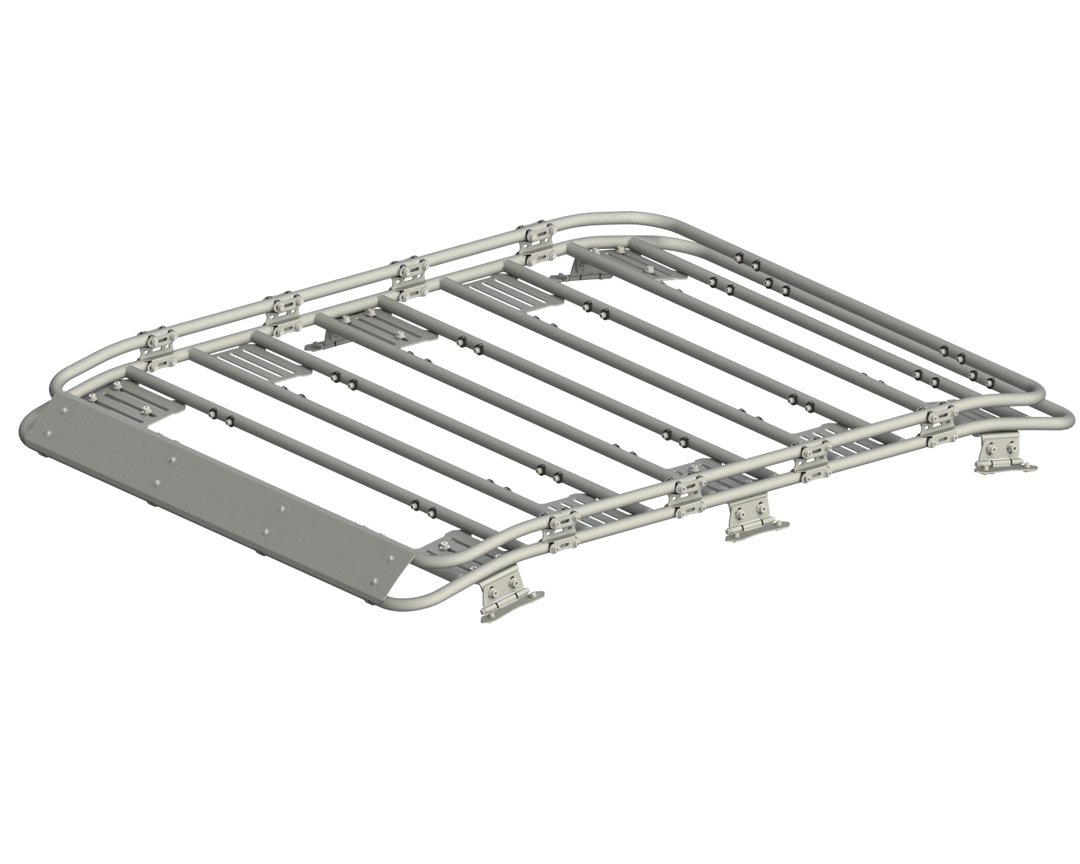

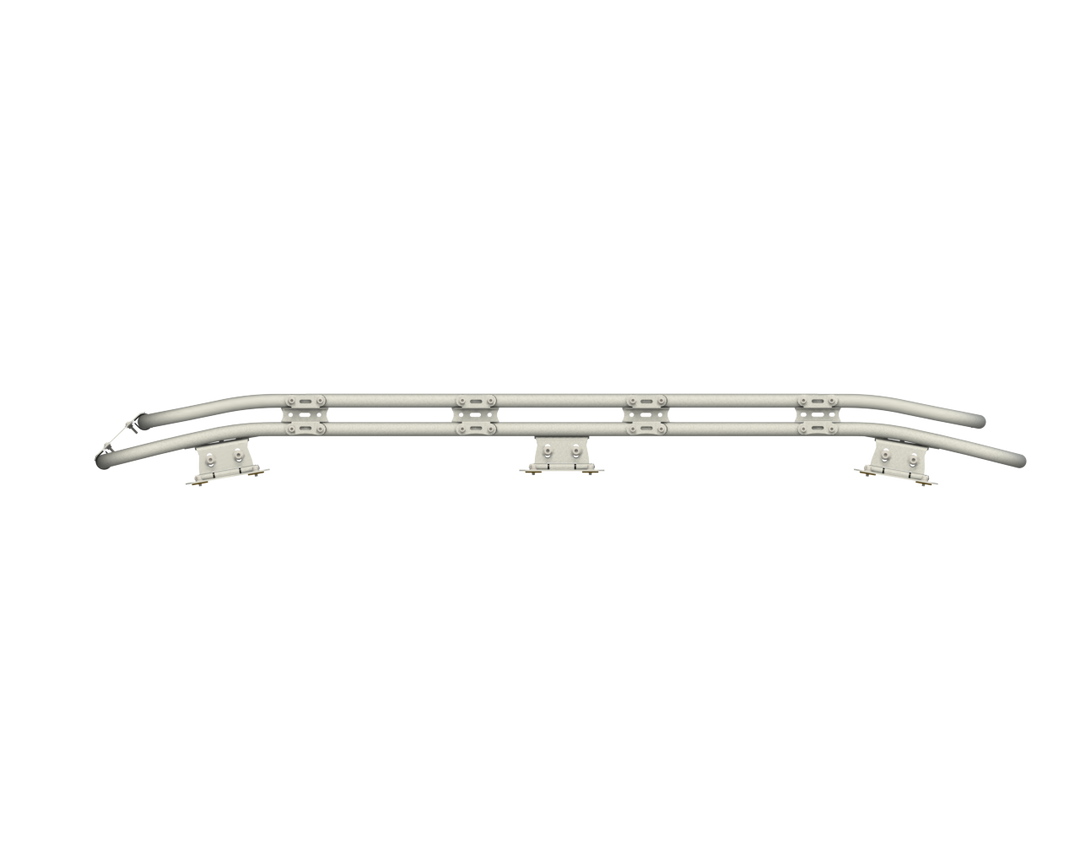

This Is A Complete Raw Finish DUAL Radius End Full Rack Assembly With All Required Hardware &  Double Tap Rails. This Rack System Features Radius End Assemblies On The Front And Back Of The Rack, Offering A Radius Side Profile That Drops The Bottom Of The Rack 2.25" (5.71 cm) On Each End To Better Match Large Radius Mounting Areas. This Rack System Comes With No Finish In its Raw Aluminum State - For This Assembly In A POWDERCOAT Finish*, Click HERE . The Overall Rack Length & Width Will Be Determined Through The Choices Above.

Each Full Rack Assembly Contains The Following:

  • (4) Radius Ends (Driver & Passenger Sides)
  • (4) Radius Upper Tubes (Driver & Passenger Sides)
  • (Determined By Length) Intermediate Assemblies
  • (DBL) Double Tap Side Supports & Hardware
  • (DBL) Connector Slugs
  • (DBL) Connector Slug 316 Stainless Hardware Sets
  • (DBL) Threaded Slugs
  • (DBL) Threaded Slug 316 Stainless Hardware Sets
  • (DBL) Crossbars (Of Selected Width)
  • (DBL) Standard Hinge Or Rain Gutter Mounts (Selection Confirmed After Order Is Placed)

    Optional Selections

        LENGTH

          • Choose Overall Rack Length Measurement (Outside Of Rack Tube To Outside Of Tube, With This Configuration The Useable Basket Area Would Be 8" (20.32cm) Shorter Than The Overall Rack Length)

        WIDTH

          • Choose Overall Rack Width Measurement (Outside Of Rack Tube To Outside Of Tube, With This Configuration The Useable Basket Area Would Be 2" (5.08cm) Shorter Than The Overall Rack Width)

        AIRDAM ASSEMBLY

          • Yes - Add Airdam: Includes The Recommended Removable Airdam Assembly Which Is Used At The Front Of A Cargo Rack System To Deflect Air Over The Rack To Reduce Wind Noise [Note This Airdam Assembly Is Designed For Use With A System Running Double Tap Rails Only]
          • No - Do Not Add AirDam: Airdam Assembly Is Not Included But Can Be Purchased And Added At Any Time.

        REMINDER: Each Full Rack Assembly Requires A Mounting Selection After The Rack Is Purchased, Standard Hinge / Rain Gutter Mounts Are Included In This Assembly, HD Mount Upgrades Are Available And Can Be Selected Below.

        *Corrosion Resistance Is Only Achieved Through A Post Applied Finish On The Raw Aluminum Components (I.E - Powdercoat Or Anodizing). Raw Finish Will Not Provide ANY Corrosion Resistance And MUST Be Coated Before Installation.

        Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

        Ex: Shipping and return policies, size guides, and other common questions.

        This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

        Carrying More Weight?

        HEAVY DUTY UPGRADE

        Selections Below Give You The Option To UPGRADE To A Complete Set Of Mounts For Your Rack Configuration, Offering The Greatest Strength And Weight Carrying Capacity

        *HEADS UP* - This Discounted Upgrade Cost Is ONLY Available For New Rack Purchases 🤙

        HD Hinge Mount Full Rack UPGRADE

        Regular price$360.00
        /
        Shipping calculated at checkout.

        *This Is An UPGRADE From Standard Hinge Mounts Purchased  With A Full Rack Assembly ONLY*

        This Is The Upgrade To Fill Each Of The Mounting Positions Available For A Full Rack Assembly Of Any Length, Which Offers The Strongest Support And Greatest Weight Capacity. Select Your Overall Rack Length Along With Desired Mounting Type And Finish For The Mounts.

        Optional Selections

        LENGTH (TOTAL NUMBER OF MOUNTS)

          • Choose Overall Rack Length Measurement - (Exact Number Of Mounts Depends On Overall Length Selected Above, But There Are 2 Mounts For Every Section In The HD Configuration)

        MOUNTING STYLE

          • Track Mount - These Zinc Coated Track Nuts Are For Use With YAKIMA® or Equivalent Extruded Aluminum Track Systems
          • Hard Mount (Exp Nut) - This Mounting Style Uses Drilled Holes And Expansion Nuts To Affix The Mount To The Mounting Surface
          • Hard Mount (RivNut) - This Mounting Style Uses Drilled Holes And RivNuts To Affix The Mount To The Mounting Surface - RivNuts Require A RivNut Tool To Install Which Can Be Purchased HERE
          • No Hardware - No Mounting Hardware Is Included (Holes Are Designed For M6 or 1/4" Size Hardware)

        FINISH

          • Textured Black - A Durable Fine Textured Black Powdercoat Finish
          • Raw - Raw Aluminum Finish With No Surface Prep*

          *Corrosion Resistance Is Only Achieved Through A Post Applied Finish On The Raw Aluminum Components (I.E - Powdercoat Or Anodizing). Raw Finish Will Not Provide ANY Corrosion Resistance And MUST Be Coated Before Installation.

          HD Hinge Mount Full Rack UPGRADE

          Questions?

          Hey We Get It - There's A Lot Going On In The World Of Zombieracks. Click The Email Us Button Below Or Give Us A Ring at (866) 906-0930, We're Always Happy To Help.
